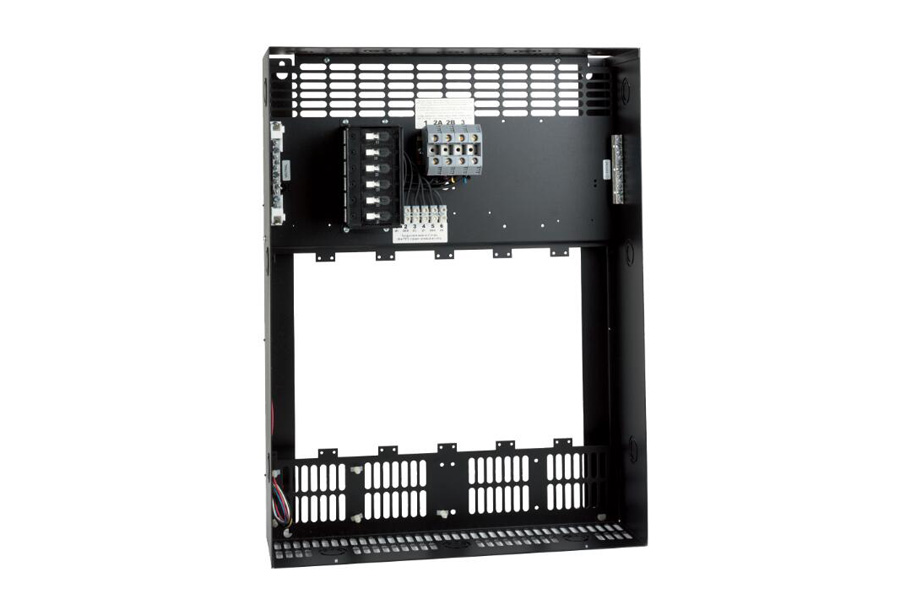

特点
- 一张 RDC-PDC 调光卡可支持多相接线
- 内含六个 20A 断路器和用于多相接线的端子
- 提供了六个空间以放置 Radia 照明模块
- 将 RDC-PDC 卡安装在专用的预接线隔室中
- 提供了适于 1/2"、3/4" 和 1" 导管的 18 个敲落孔
- 每个单元最多支持 18 个调光通道(3 个 RE-DM6)
性能
尺寸(高宽厚) |
24" x 18" x 6" (60.7 cm x 45.7 cm x 15.2 cm) |
Dimensions From Center Lines |
- A to B = 16.0" (40.6 cm)
- B to C = 22.88" (58.1 cm)
|
重量 |
16.5 lbs (7.5 kg) |
Configurations |
- ENC6B/120: 20 A Breakers
- ENC6B/240: 10 A Breakers
|
线路输入 |
- 140 A max per enclosure
- Input 1 feeds channels 1, 4, 7, and 10
- Input 2a feeds channels 5 and 11
- Input 2b feeds channels 2 and 8
- Input 3 feeds channels 3, 6, 9, and 12
- Breakers are UL 489 listed 10,000 AIC, 100% Switching Duty, Hydraulic-Magnetic
|
Wiring |
- Maximum input wire #1/0 AWG (50mm²)
- Maximum line input is 140 A (per enclosure )
- Torque input wire to 44 in-lbs (5.0 N/m)
- Wire stripping length: 0.67 inches (17 mm)
|
FG Numbers |
RDA-ENC6B |
|
|
